IPoster 10.1 Inch Touch Screen Monitor 4G GPS WIFi DVR ADAS DSM BSD AHD Fatigue Alarm System for Bus Truck Fleet Management

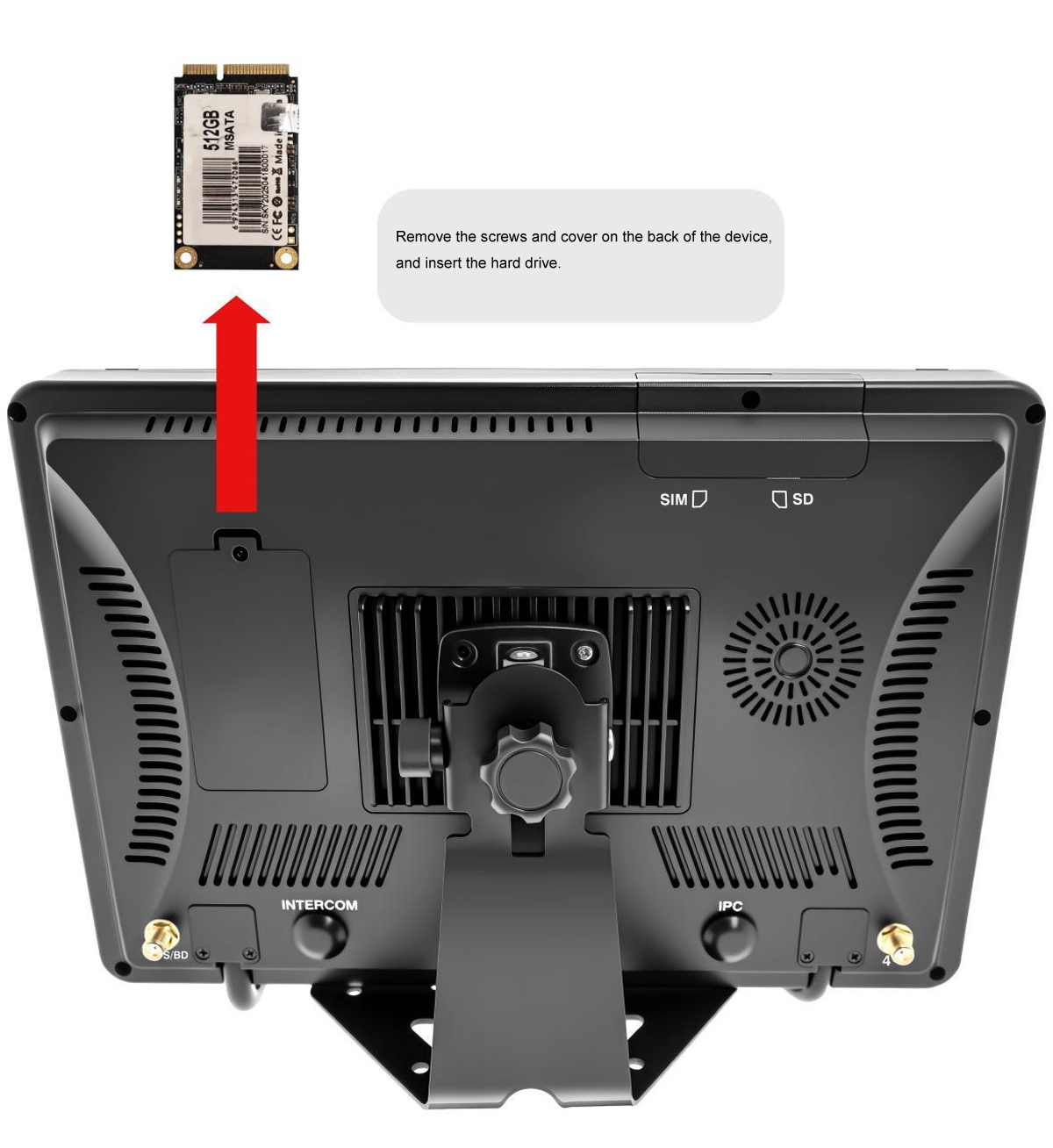

iPoster 10.1″ IPS TOUCH SCREEN 5ch Monitor Splitscreen with Built-in DVR-Loop Recording/Max Support 256GB SD Card/500GB Hard Disk For Video Recroding with 4ch BSD AI Detection/DMS Driver Fatigue Alarm System / 4G WIFI Sim Card For Anywhere anytime viewing Function / GPS Location / Sentry Mode Function
+360 View 5x 4PIN 1080P AHD Front / Sides / Rear View Cameras Night Vision Waterproof Wide View Angle Glass Lens 2053 Chips
Video Cables Setting: 4x 5m+1x 15m 4PIN Extension Cables in default, if you need extra length, pls contact us.
12-36v For Truck Bus Van Trailer Motorhome Tractor Caravan and other Heavy Duty Vehicles

About this item:
4K AHD & 1080P RV Camera System: With 4K 10.1 inch 4 split large screen and 5 x 1080P AHD cameras. Let you get the clearest picture at all times, avoid the blind spot. Makes our driving safer.
Built-in DVR Recording Function: Supports loop record 4 view cameras at the same time. Saving the 1 min, 5 mins, and 10 mins video automatically according to your choice, you can find the video easily in the monitor.

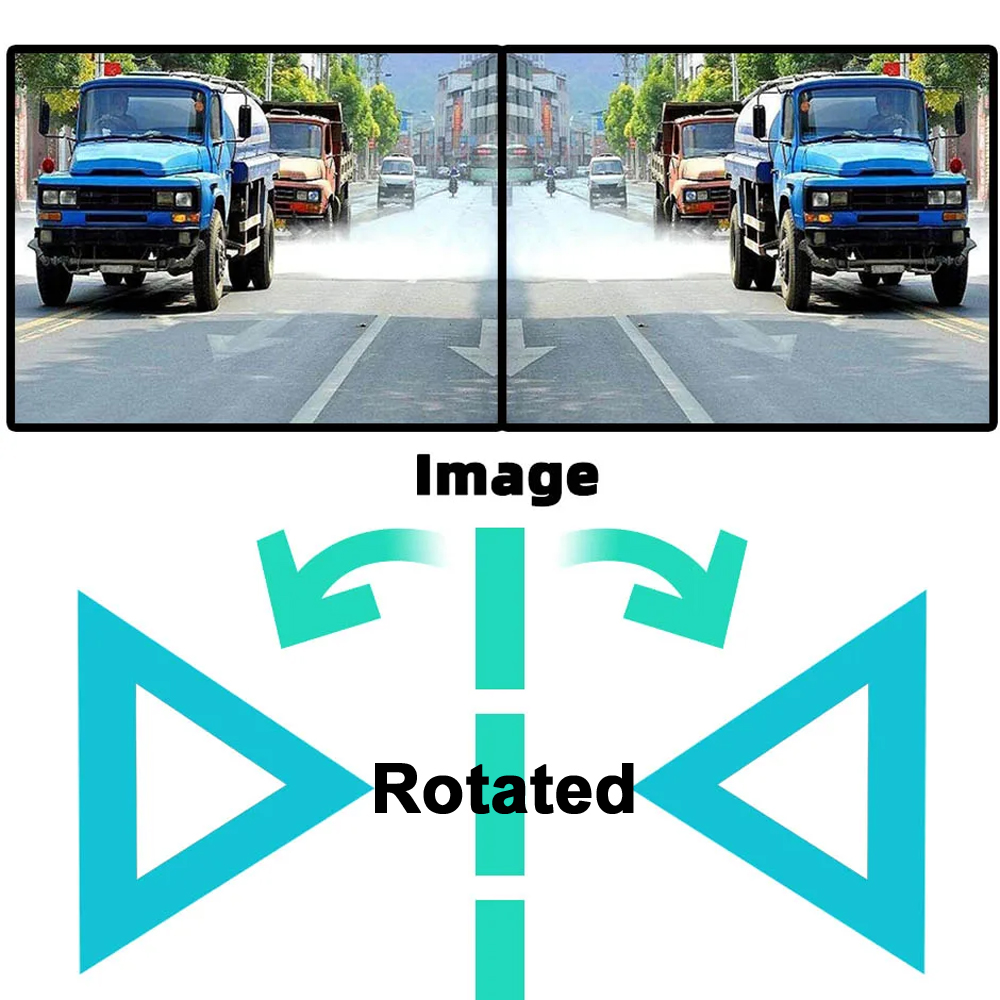

Compatible & Power Supply: 10.1 inch large monitor system for RV truck box truck semi truck Trailer travel trailer bus heavy duty camper tractor, the 5th Wheel, Motor homes. Power supply: 12-24V DC. Support mirror & flip image.
Great Night Vision & Adjustable Parking Assist Line: With 18 infrared LED lights from the rear/side/frount view backup cameras, give you clear pictures at night. You can adjust the width and height of the guide line as your needs. Touch-sensitive induction, convenient and fast.

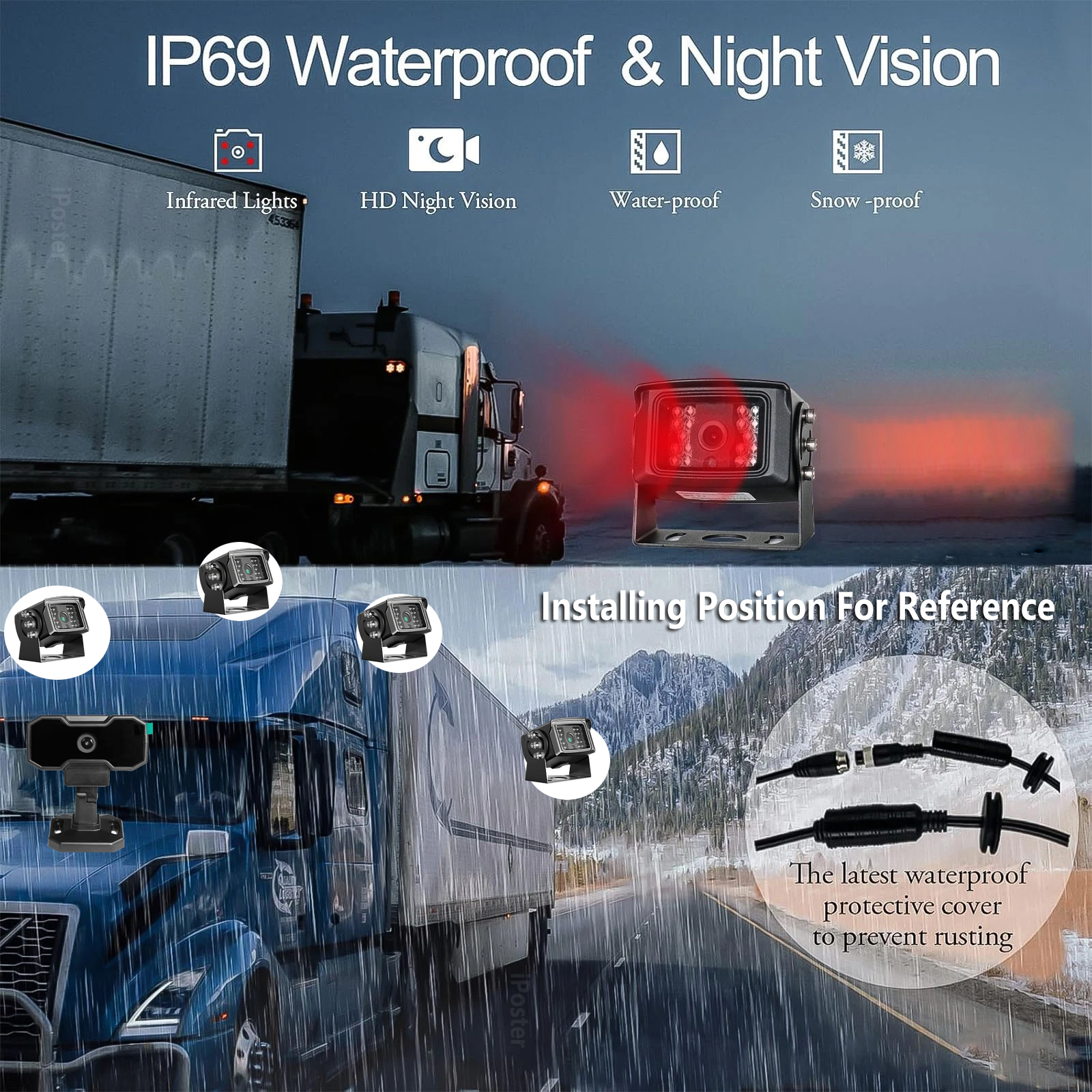

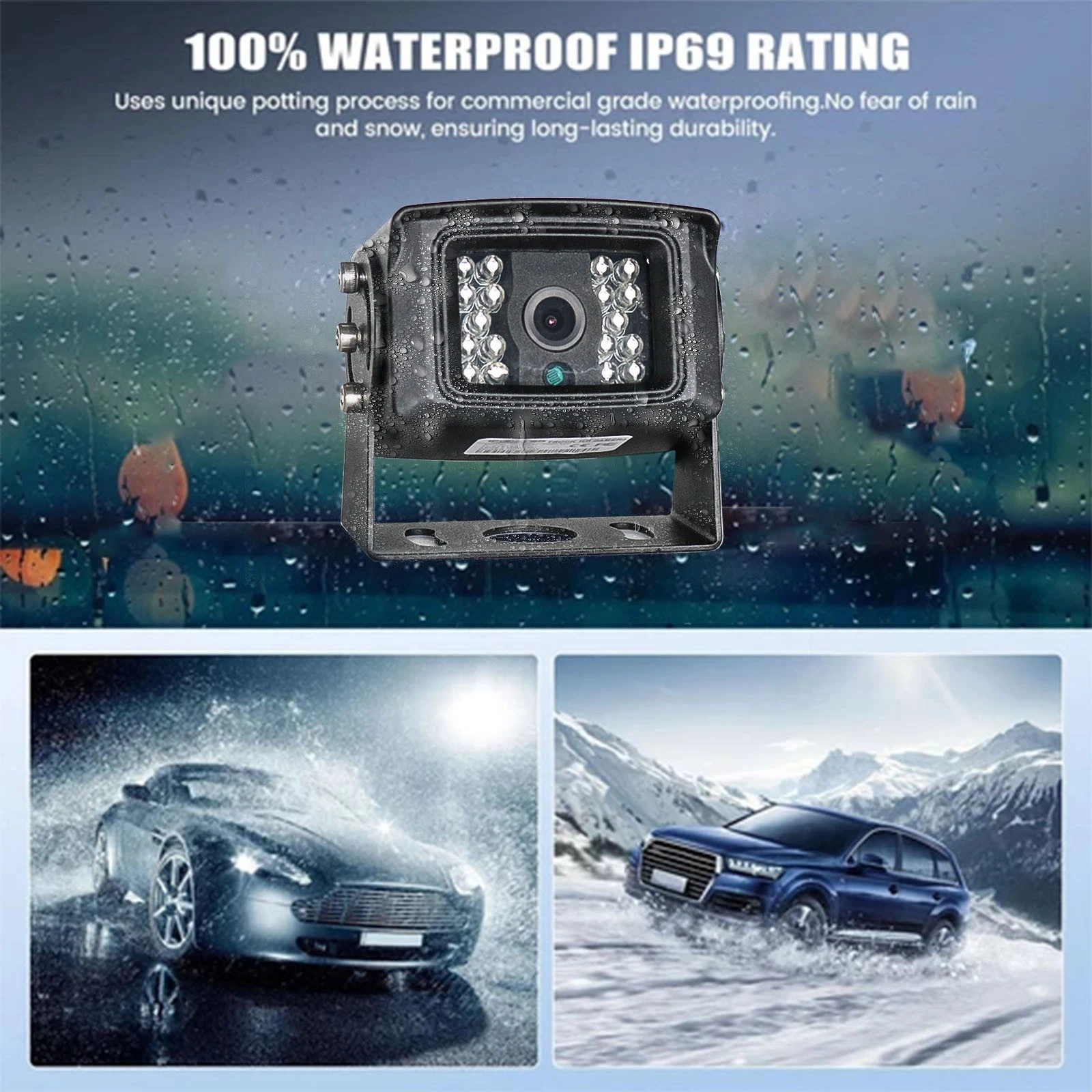

IP69 Waterproof & Wide View Aangle: Adopting multiple glue sealing technology, IP69 waterproof level and can work normally in various extreme bad weather. Operated Temperature from -59°F to 176°F.

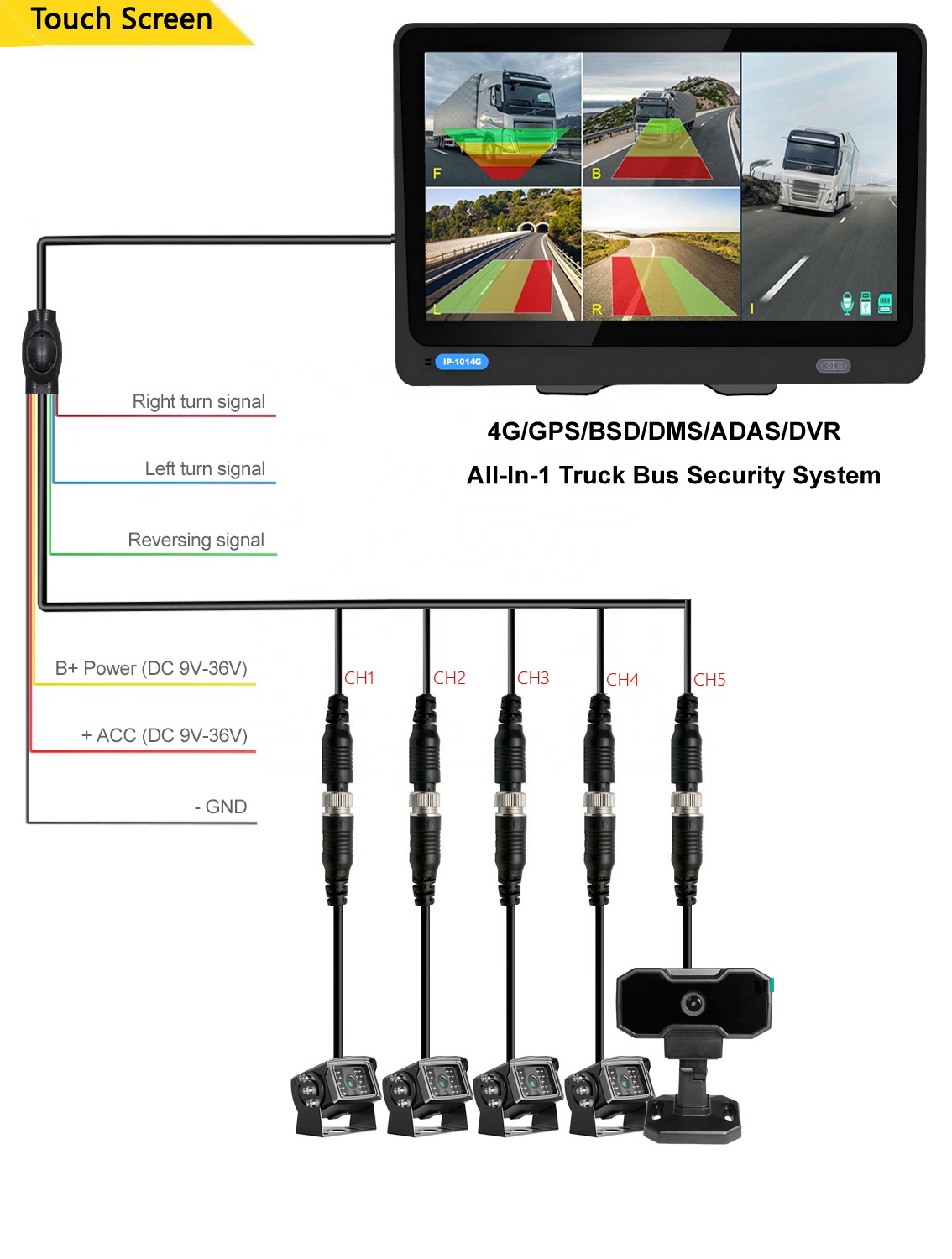

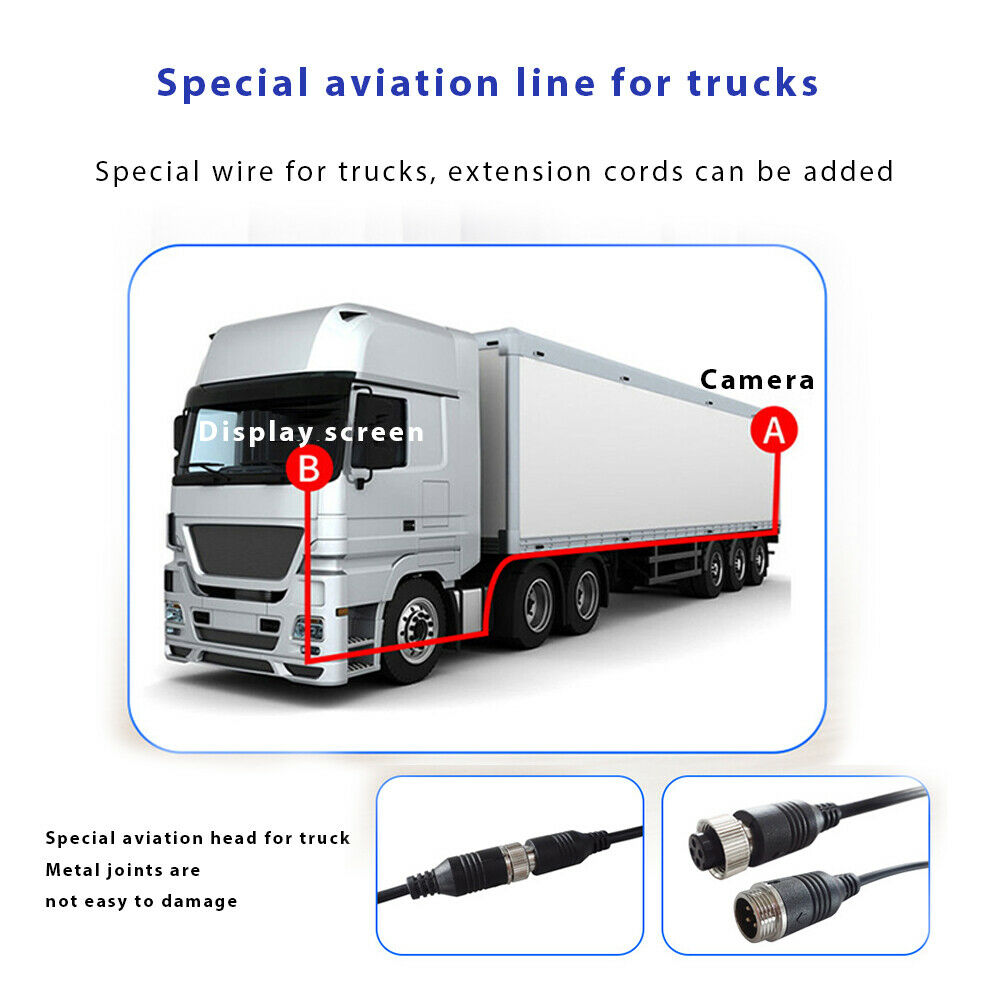

Easy to Install: Wired system without any signal problem. You only need to provide power to the monitor, and the camera will also receive power at the same time. The camera only needs to connect the extension cable from the monitor.
Quality Guarantee: 1-Year Warranty, 30-Day Money-Back Guarantee, 24-Hour Online Customer Service, and Lifetime Support. Just contact us as your need.

Main Features:
DMS/BSD/USB/MP5/Parking Lines Adjusting/Parking Monitoring

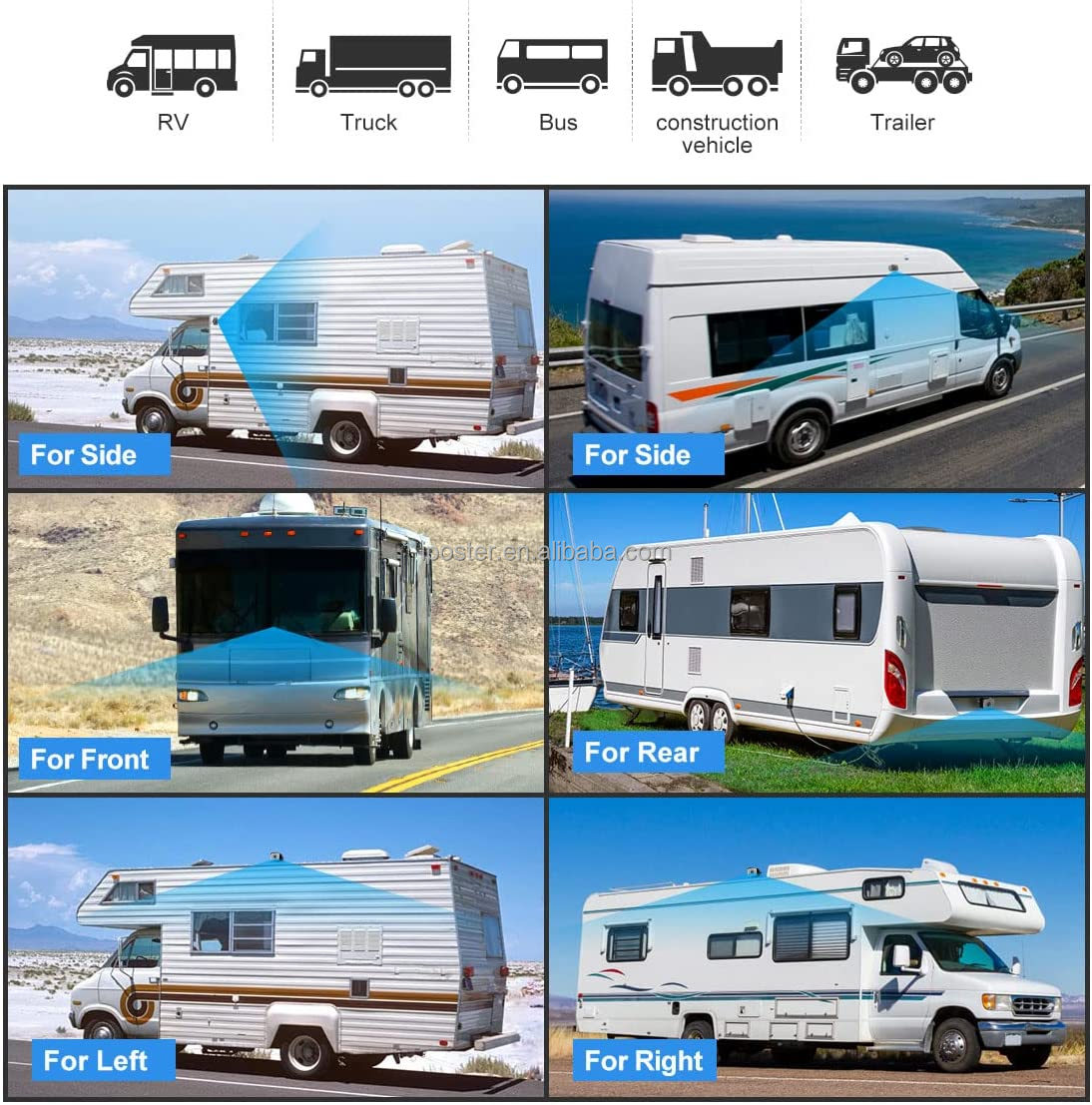

5x 4PIN 360 Viewing Heavy Duty 1080P Front/Sides/Rear Reversing Cameras IR LED Night Vision IP68 Waterproof Anti-Shock

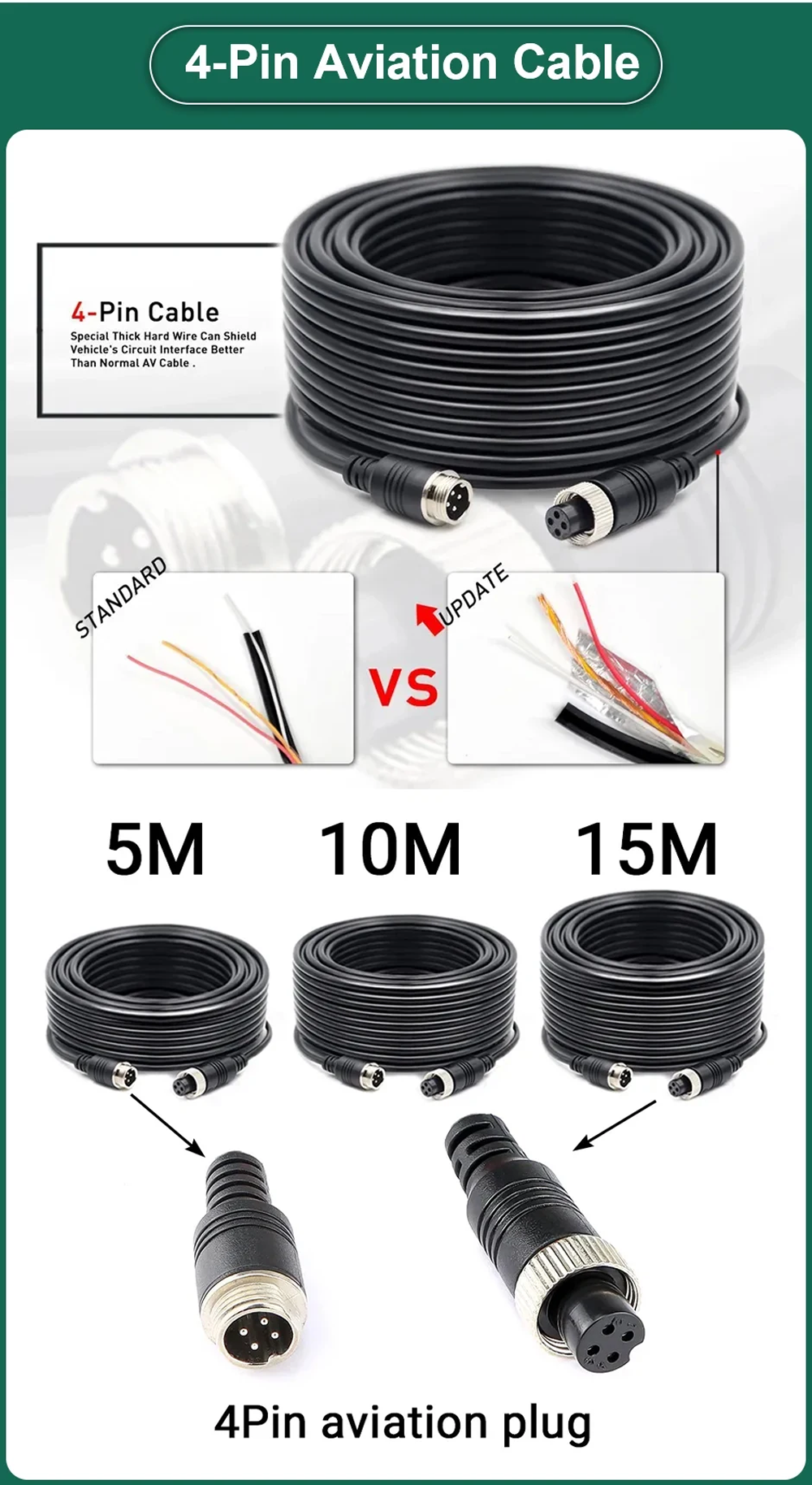

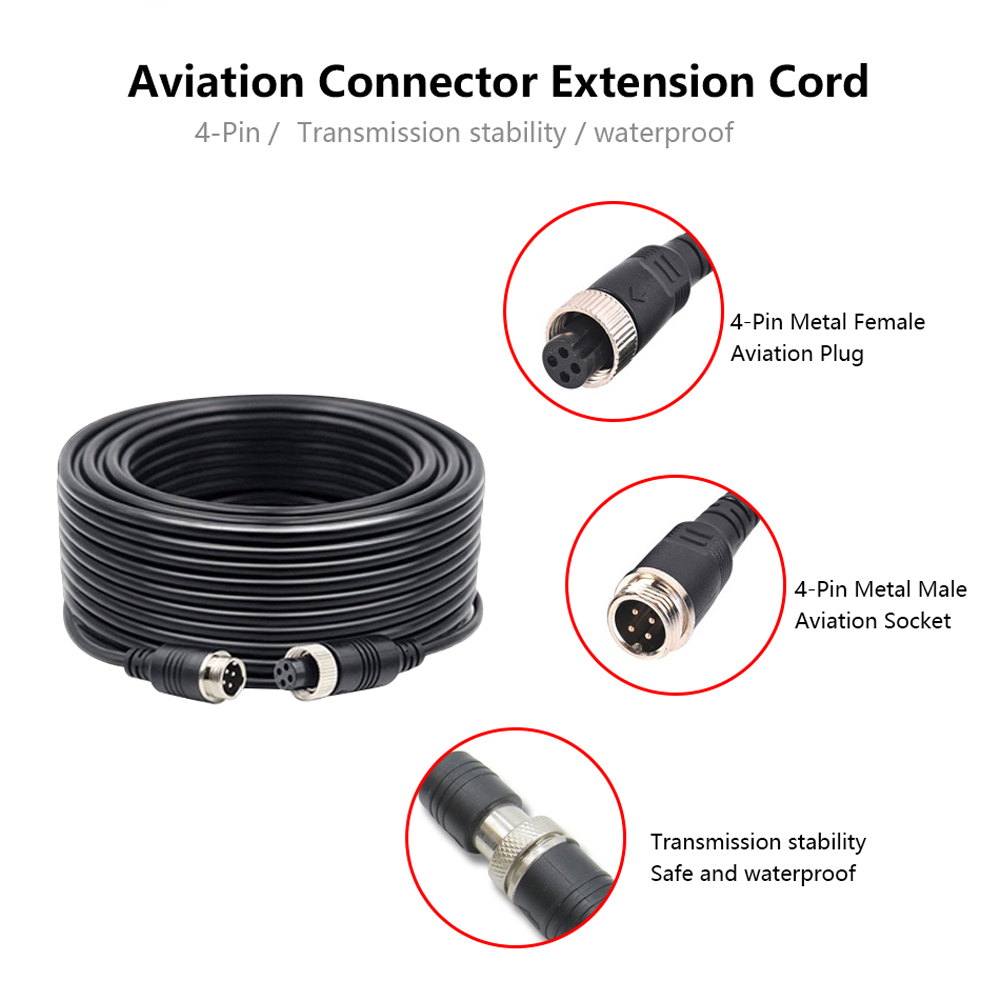

4x 5M +1x 15M 4PIN Extension Cables-Double Shielded Wire-No interference for Video Audio Signal-Make it has a stable image
12-36v For Caravan Truck Bus Van Trailer Motorhome Horse Float,etc
IP-50TX Makes No Boring Driving!
Parking Lines on/off in monitor; You can adjust its parking height and width!

IPS Screen
* Excellent 178° Full-view display technology
* 178° Wider viewing angles
* Faster response times
* Better color/contrast than many VA and TN panels
* Outstanding color accuracy and screen consistency

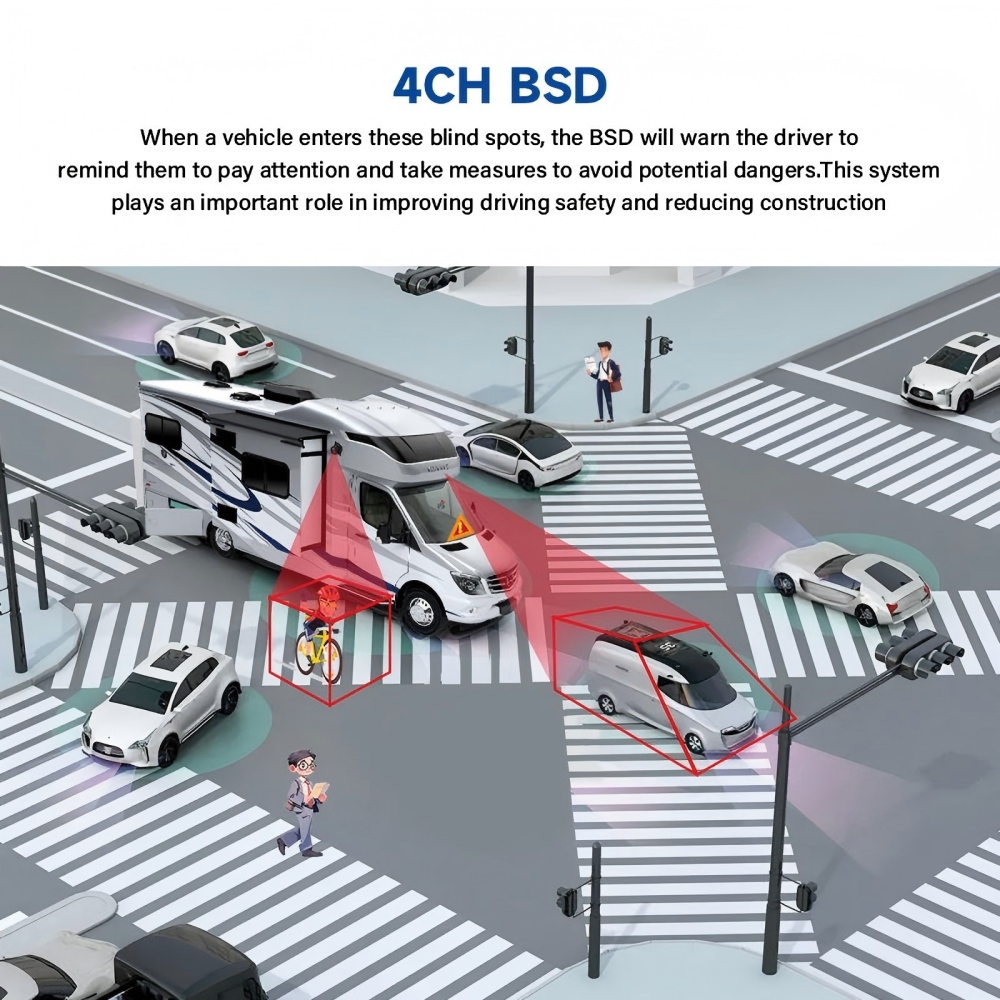

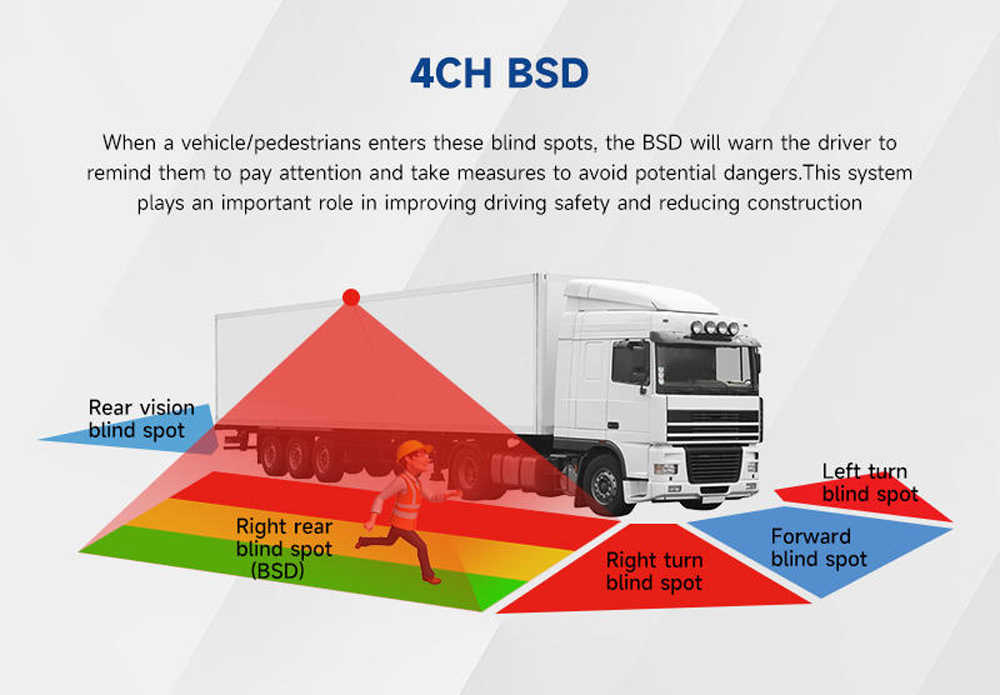

AI Smart Blind Zone Detection Alarm:
*The Monitor has a built-in high computing power Al smart main control chip and high-definition AHD wide-dynamic photosensitive motherboard, which can monitor and identify the risk of reversing in the output image moving object information , greatly improving driving safety.
* Screen warning: When reversing, the human body and the vehicle can be dynamically identified in the output video screen. When the human body or vehicle enters the scale of the screen, the scale of the screen display red to provide a warning.
* Sound warning: When reversing, when a human body or a vehicle enters the scale range of the screen, the scale range of the screen display red, and the speaker emits a warning sound.
* Support blind zone range settings, you calibrate new blind
spots warning range.
* Support parking Line range adjuctable.

DMS Alarm:
1ch Inner camera monitors the driver throughout the journey to prevent fatigue driving and smoking.
A great helper for long-distance drivers.

Sentry Mode:
When the sentry mode is turned on,if a pedestrian is detected enteringthe monitoring screen,the mobile APP will receive a push message. It will bring you and your beloved truck more security.

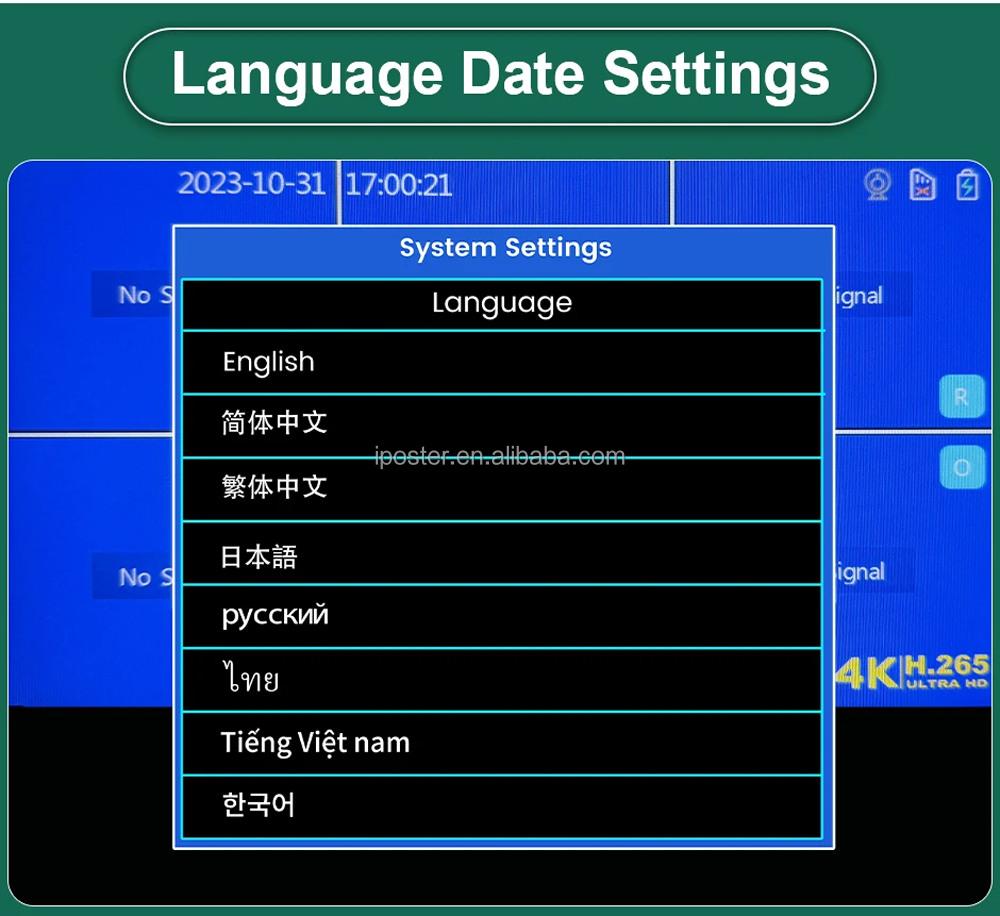

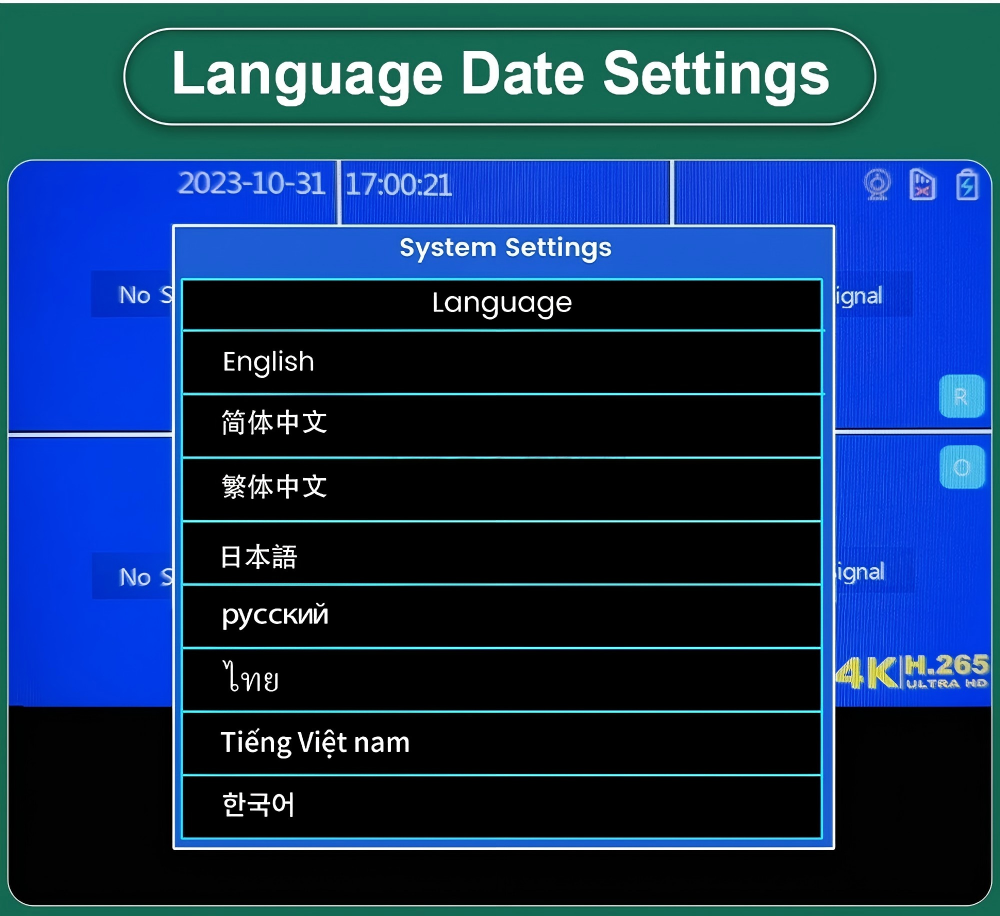

Language Settings :
*7 Kinds menu language : English/Chinese/Japanese/Russian/Thai/Vietnamese/Korean

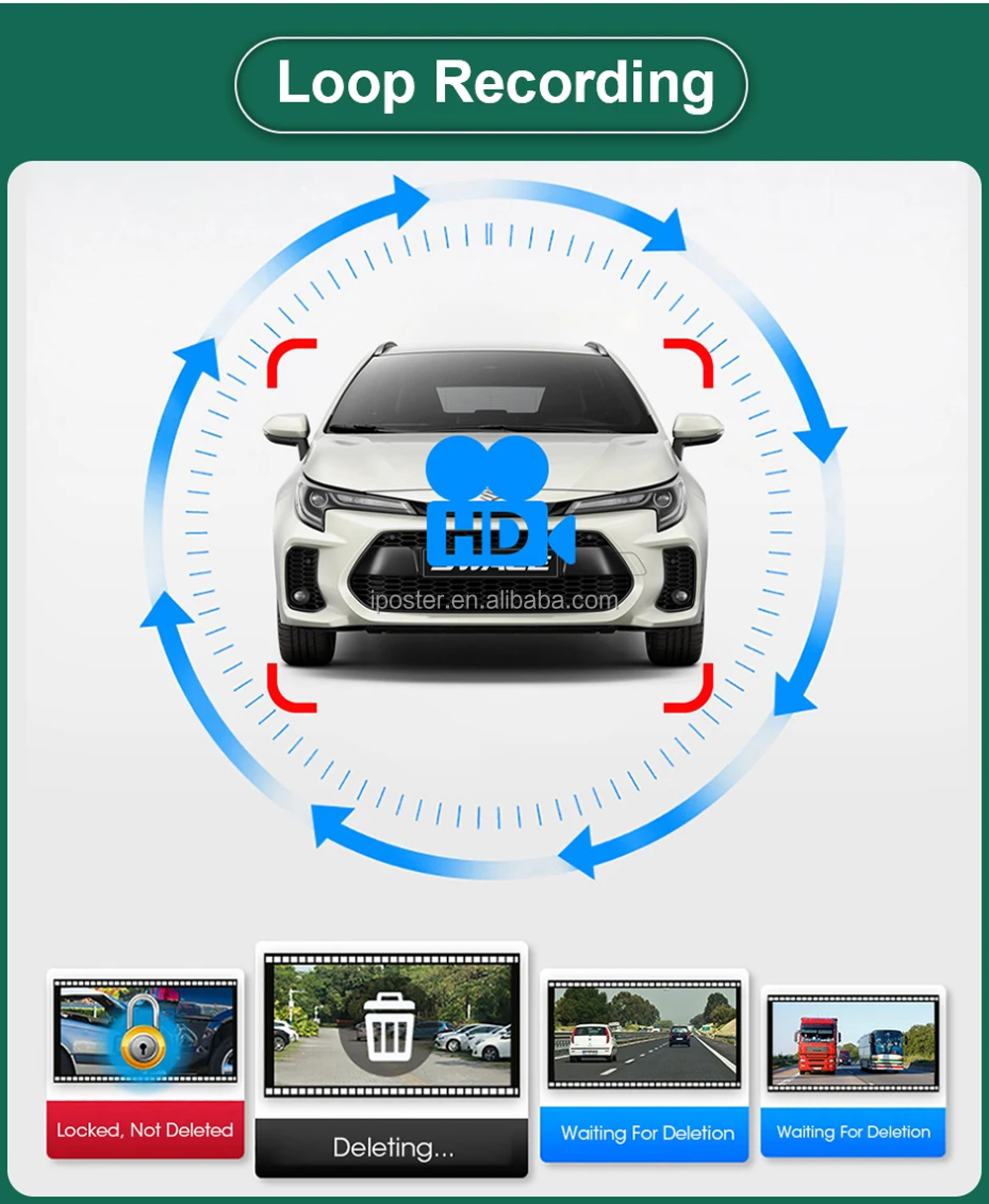

Loop Recording:
* Parking video recording and playback, it will record the parking video in 24/7 mode when you are not inside of the car. The storage support up to 256GB. Automatically overwrite the previous recordings with new files when the memory card is full.
* Adopt Time-lapse video recording technology, save more space and no need to format the memory card often. (Note: Time-lapse video recording is only available during parking period, the monitor will always support normal video recording during driving.)

Camera Specifications:
Type:car truck reverse parking camera
Material:Metal
Item color:Black
Sensor: 1/3 inch color AHD
TV system: PAL
Horizontal Resolution: 2M/1080P
Effective pixels: 1080P
Minimum illumination: 3Lux/ F1.2 (0.1Lux)
Night Vision: 15 meters
Lens: 2.8mm
Diagonal Viewing Angle: 120 degree
Synchronization: Internal synchronization
Signal to noise ratio: >48db
Video Output: 4PIN interface, 1.0Vp-p, 75Ohm
Power: DC 12-36V
Current Consumption: 130mA
Operating Temperature: -10 to 85 Celsius, RH95% Max
Storage Temperature: -40 to 100 Celsius, RH95% Max

Package:

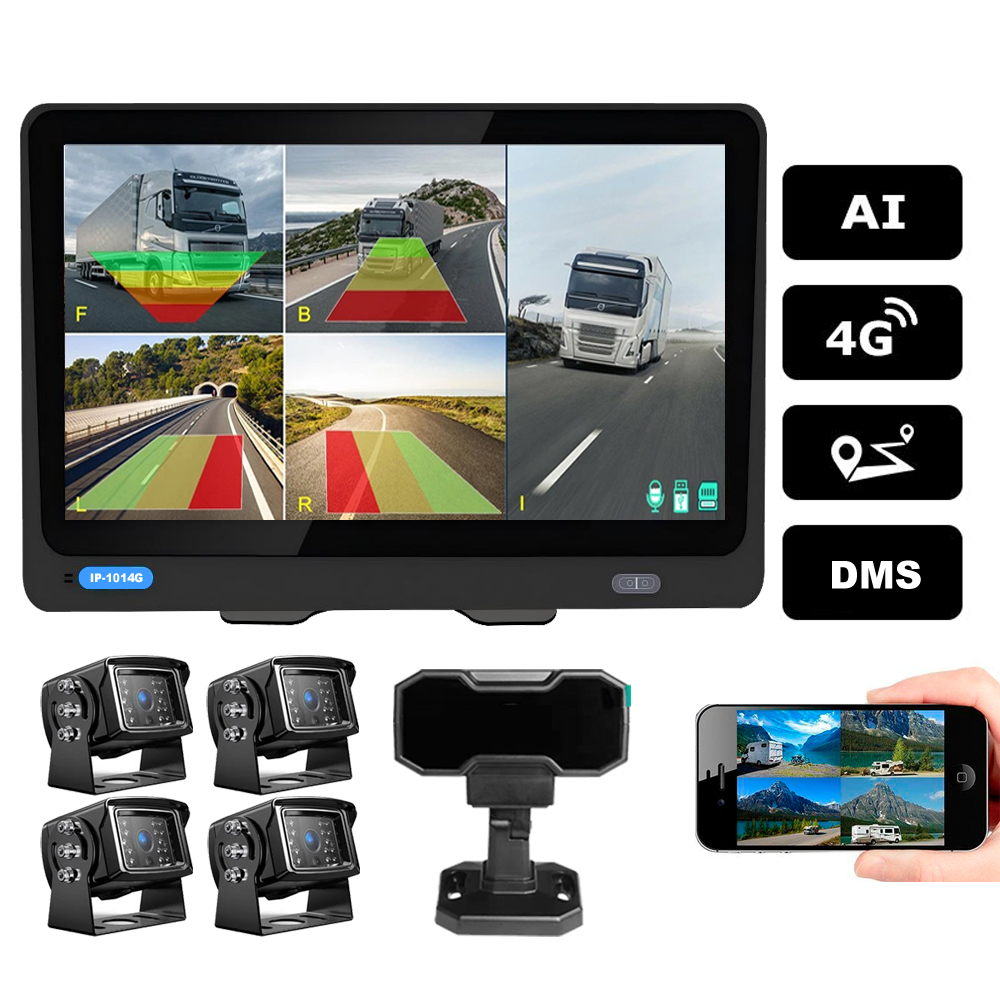

1x 10.1 Inch IPS Screen 5ch DVR Monitor with 4G WIFi GPS BSD Ai Detection & DMS
1x Power Harness
1x Bracket & Screws
1x Sticker
3x 5m cable
1x 15m Cable
1x DMS Inner Front camera
4x Rear Cameras
1x User Manual
