-Support reversing aid setting ；
-Proprietary SD card bad track detection technology to ensure video continuity and extend SD lifespan；
-Built-in super capacitor to avoid abnormal power loss data loss and disk damage；
-Support intelligent power management identification, low power automatic shutdown, flameout low power consumption；
-Various protection circuits such as undervoltage, short circuit, and reverse connection are applicable to various models.
|
Power
|
Voltage Input
|
DC12-36V
|
|
Voltage Output
|
DC12V (+/-0.2V, max. 2.0A) / DC5V (+/-0.2V, max. 0.5A)
|
|
|
System
|

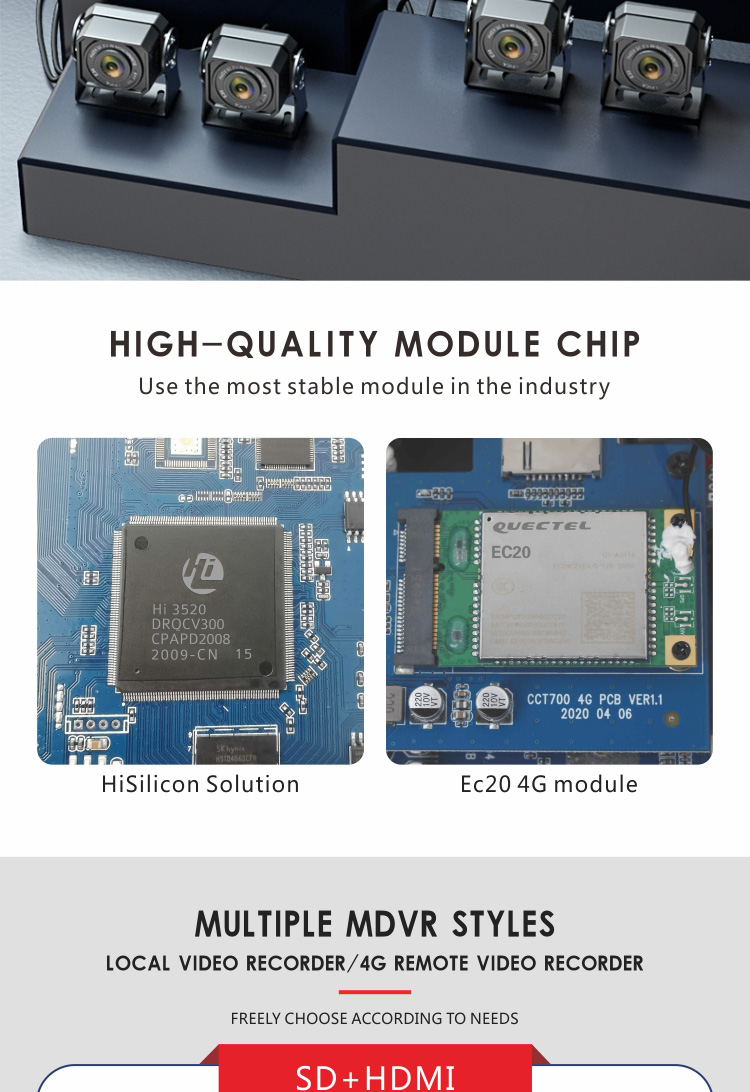

Main Processor
|
Hi3520DV300
|
|
Operating system
|
Embedded Linux OS
|
|
|
Language
|
Chinese/English/support all language
|
|
|
OSD
|
Graphical User interface OSD menu
|
|
|
Password
|
Users Password/ Administrator Password
|
|
|
Video
|
Video input
|
4CH AHD digital signal or Analog Video Inputs
|
|
Video output
|
1CH Video Inputs (1.0Vp-p/ 75 Ohms),
|
|
|
1CH VGA output
|
||
|
Preview
|
1 CH/ 4 CH Preview.
|
|
|
Recording Ratio
|
PAL: 25 Frame/s; NTSC: 30 Frame/s
|
|
|
Image Compression
|
H.264 or H.265 Main profile/MJPEG
|
|
|
Video Standard
|
PAL/NTSC
|
|
|
Image Resolution
|
1080P/1080N/720P/960H/D1/CIF
|
|
|
Playback quality
|
1080P/1080N/720P/960H/D1/CIF
|
|
|
Audio
|
Audio input
|
4CH/6CH/8CH
|
|
Audio output
|
1-CH
|
|
|
Audio Bit Rate
|
8KB/S
|
|
|
Recording mode
|
Audio & Video sync.
|
|
|
Image processing& Storage
|
Video Quality
|
1080P/720P/960H/D1/CIF each channel;
|
|
Highest Video Quality: 4CH Full 1080P
|
||
|
Bit Rate
|
1080P: 2048Kbps~6144Kbps
|
|
|
D1: 512Kbps~1536Kbps
|
||
|
6 levels optional.
|
||
|

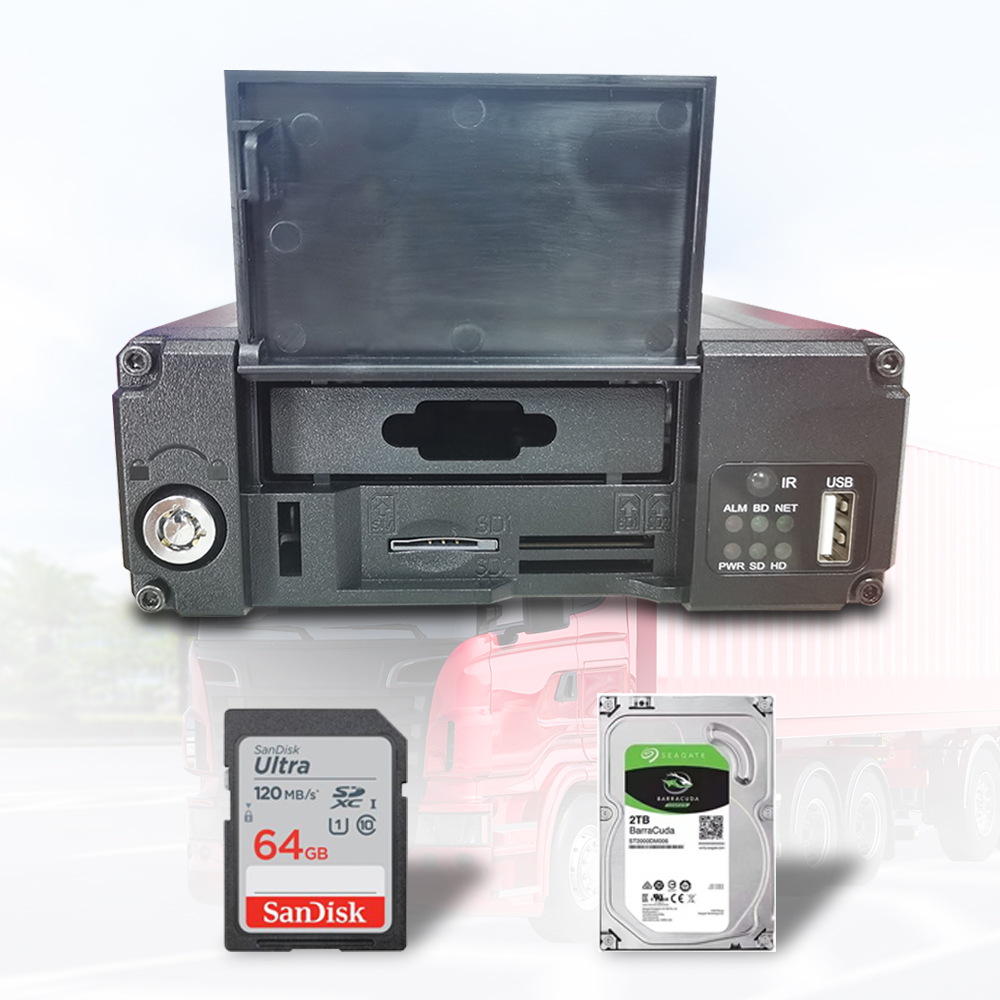

Storage
|
2TB Hard Disk & 128GB SD Card (maximum)
|
|
|
Alarm
|
Alarm input
|
4 alarm inputs
|
|
Alarm output
|
1 alarm output
|
|
|
Firmware Upgrading
|
Upgrading mode
|
Manual/Automatically/Remote/Emergency Recovery
|
|
Upgrading method
|
USB disk/Wireless network/SD card
|
|
|

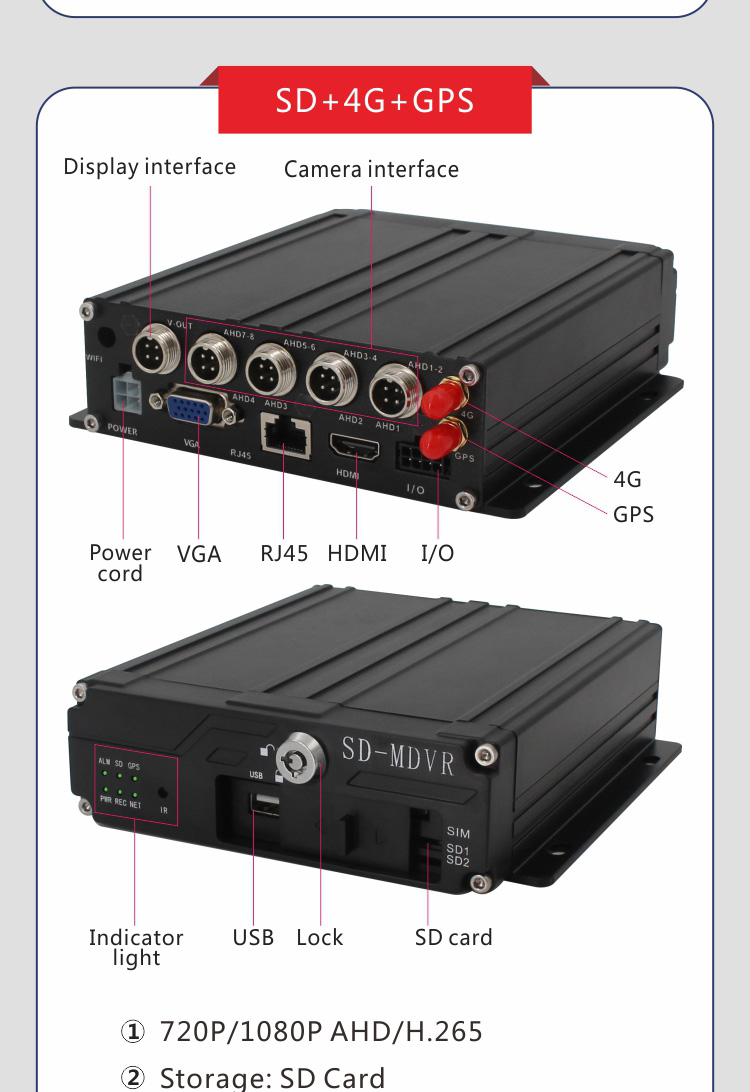

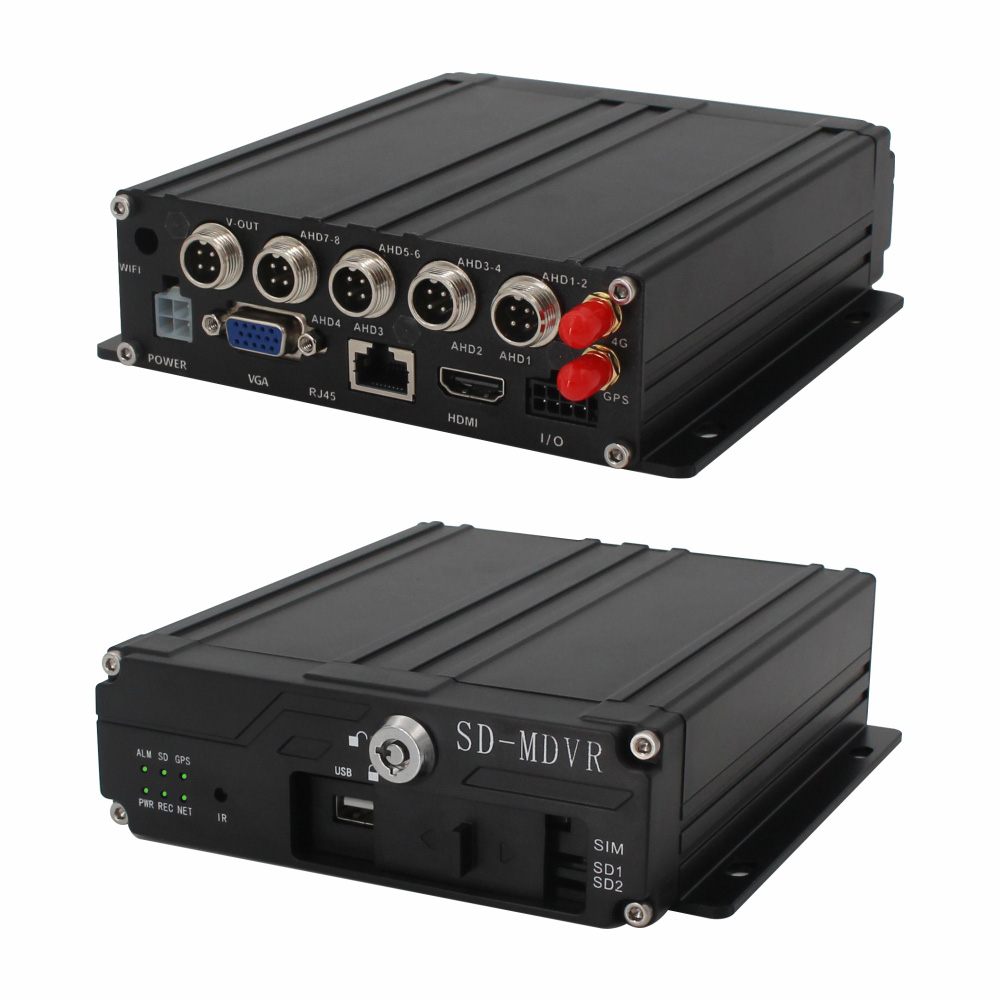

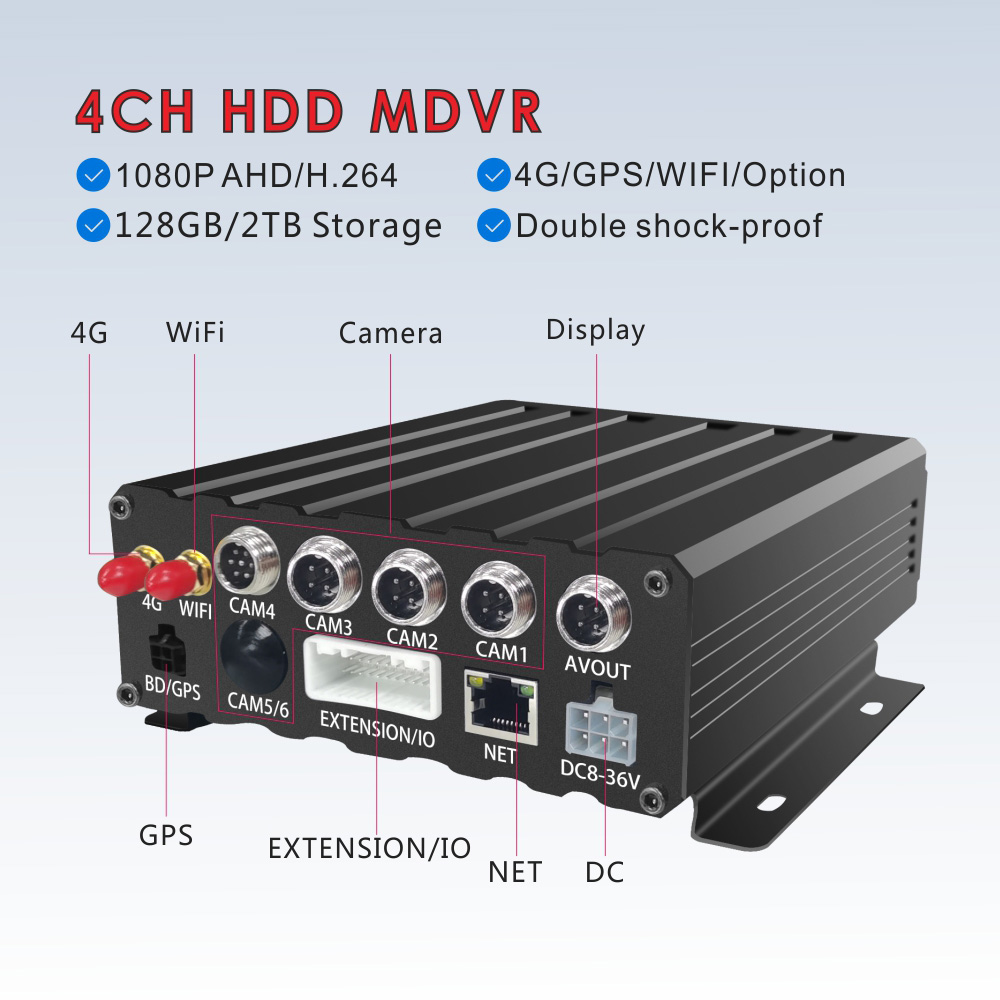

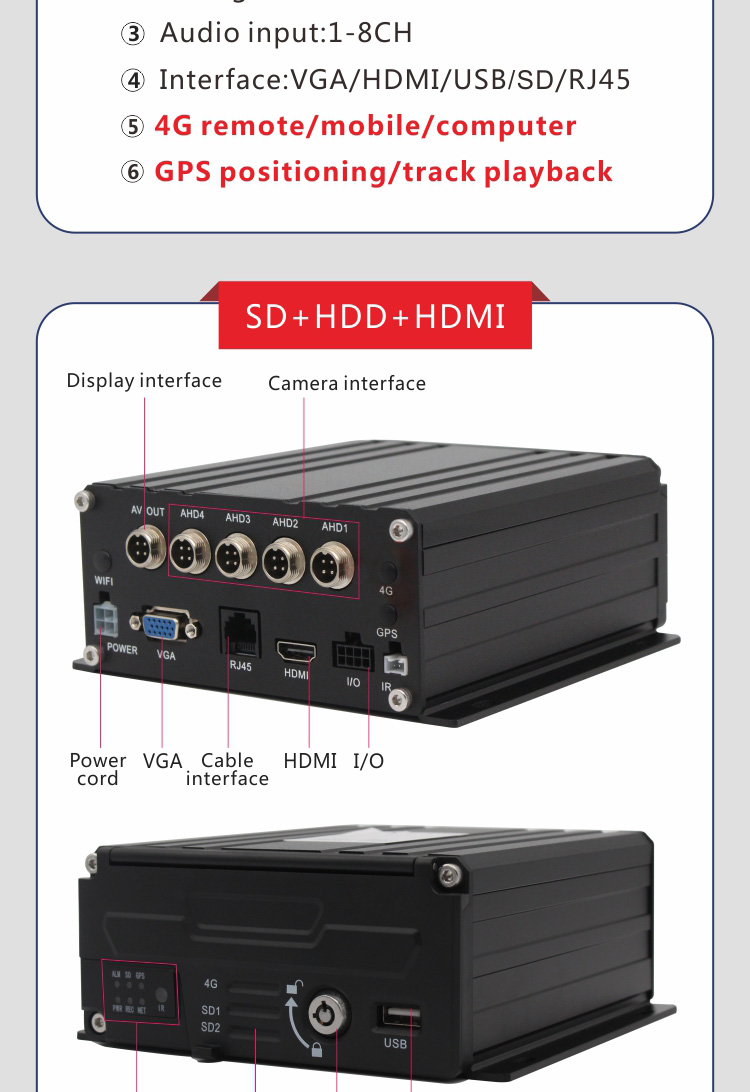

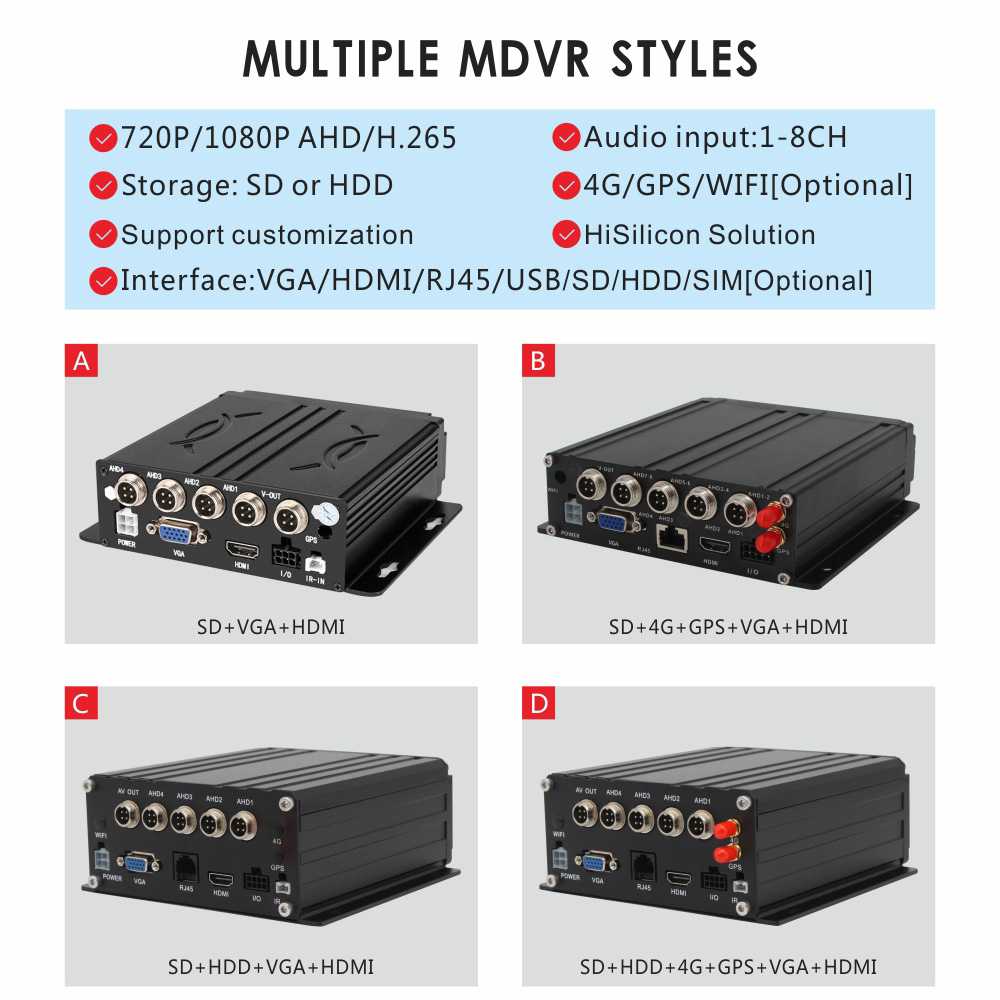

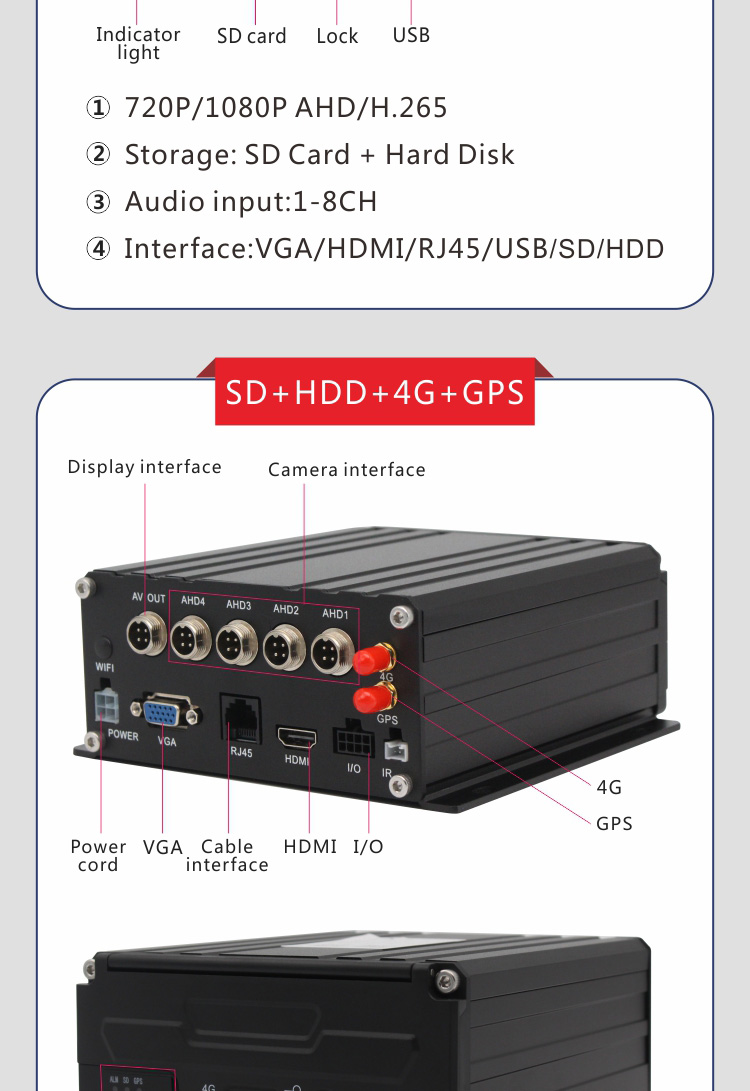

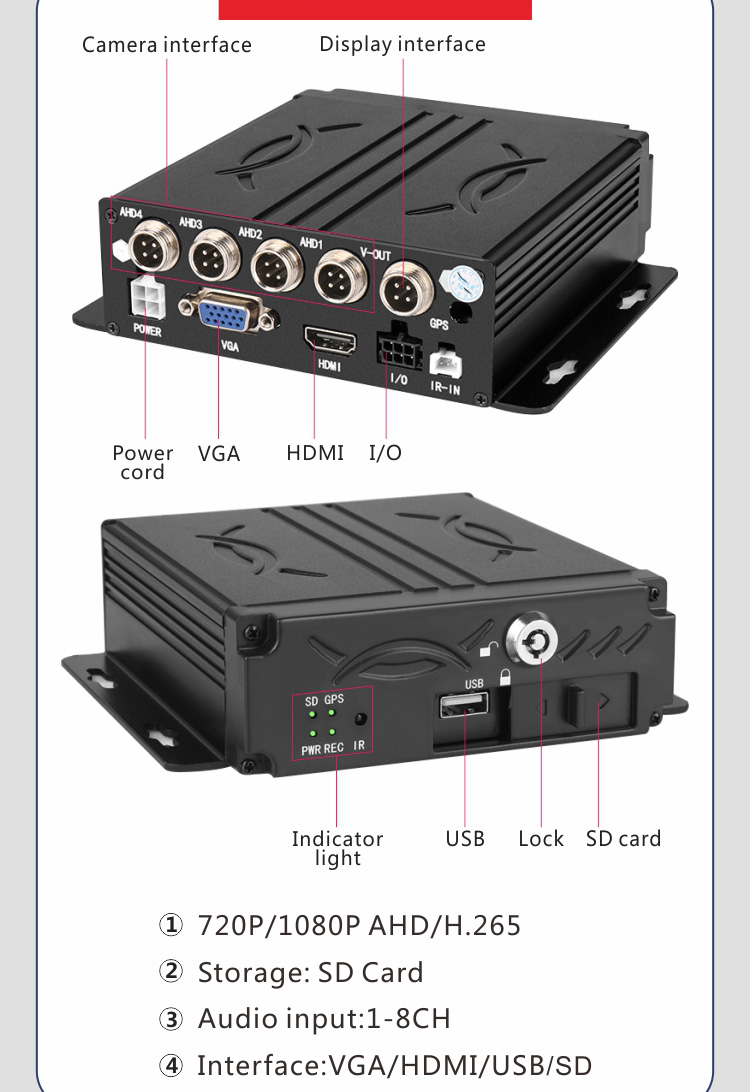

Interface
|
RJ45 Interface
|
No
|
|
AV input
|
4/6/8 ch Aviation interface
|
|
|
AV output
|
1ch VGA video output, 1ch Aviation AV output
|
|
|
Ignition input
|
1 ACC signal
|
|
|
UART
|
1 LVTTL Level
|
|
|
USB 2.0 Port
|
Yes
|
|
|
RS232 Interface
|
1-RS232 interface
|
|
|
Wireless
|
3G/4G
|
Optional,Supports CDMA/EVDO/GPRS/WCDMA/FDD
|
|
LTE/TDD LTE
|
||
|
Wi-Fi
|
Optional (Wi-Fi Client/ Wi-Fi Hotpot),(Wi-Fi Client/ Wi-Fi Hotpot),802.11b/g/n, 2.4GHz
|
|
|

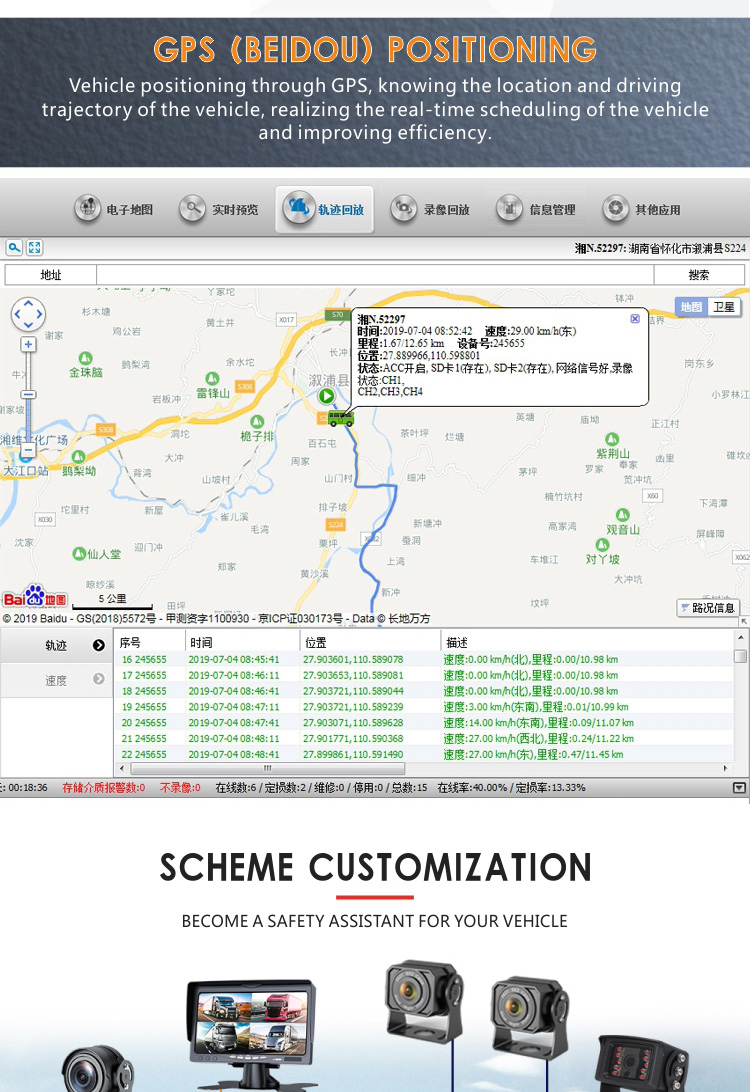

External GPS Module
|
(Optional) ,Support detecting antenna Plug in/Unplug/Short
|
|
|
Operation Environment
|
Temperature
|
‘-20°~70°
|
|
Humidity
|
10% to 95%
|
